Everything you need comes standard. Premium features, trusted components, and essential touring gear all included in every Legacy 16D.
Coupling: Cruisemaster DO35 Hitch
Jockey Wheel: ARK 750 Off Road Jockey Wheel
Chassis: Fully Galvanized Inside & Out
Brakes: 12” Electric Off Road Drum Brakes
Under Body Protection Coating: Standard
ADR Approved Safety Chains: 2 with D Shackles
Gas Shock Absorbers : 4
Full Size Spare Wheel : 1
Jerry Can Holders: Includes Tie Down Points
Awning: Livin RV 360 Awning
Enclosed Annex: Optional
Breakaway System: Standard
Suspension: Australian Designed Adjustable Independent Trailing Arm Suspension
Wheels: 6 Stud 16” Alloy
Tyres: 265/75/R16
Stabilizer Legs: 4 Heavy Duty Adjustable Drop-Down Legs with Winder
Fan In Fridge Slide: Standard
Rear View Camera: Standard
Front Water Tank: 120L Poly with Bash Plate
Rear Water Tank: 120L Poly with Bash Plate
Grey Water Tank: 80L Poly with Bash Plate
Mains Water Inlet: Standard
Dometic Dust Reduction System: Standard
Stainless Steel Kitchen: Standard with Dish rack & Folding Prep Bench or Wind guard
Gas Plumbing: to External Kitchen & Internal Kitchen & Hot Water System
Plumbed Water: To Ensuite & Sinks + A Frame Water Outlet
Air Conditioning: Dometic Reverse Cycle Aircon
Diesel Heating 5KW with Digital Display Australian Warranty
Internal Fans: 2 Adjustable Ranger Fans with 3 Speed Settings & Timers
Internal Seating: Leatherette
Flooring: Composite Floor with Premium Vinyl
Main Mattress: King Bed Pillowtop Innerspring
TV: 24inch Australian Supplied Smart TV
Entertainment System: DVD/BT/CD/Radio with 4 Marine Speakers
Internal Ensuite: Dometic Cassette Toilet with curtain
External Shower: Included with Shower Tent & Led Lighting
Battery: 400ah LIFEPRO4 Battery
Battery Management System: Redarc Alpha Manager 50 with Redvision Display
Battery Distribution System: Redarc Rouge 40A Distribution box
Inverter: Redarc RS3 2000W Pure Sine Wave Inverter with Auto Transfer
Solar System: 900W Monocrystalline Solar Panels Roof Mounted (Expandable)
External Solar Point: Standard
Water Tank Gauges: Standard Monitored Through Redvision Display
Fridge Slide Power: 240v, Anderson Plug, 12v Socket
Internal 12v: 12v Sockets, USBA, USBC
External 12v: 12v Sockets, USBA
External 12v 2x 3.5mm Sockets
External Led Lighting: Dual Tone (Amber & White)
240v Power System: 15A Inlet & 10A Outlet Waterproof
Antenna: Standard
Tare: 2450KG
GTM: 2790KG
ATM: 2990KG
Ball: 180KG
Length:6950mm
Width:2250mm
Height:2680mm
I’ve updated the specifications to reflect the REDARC Alpha Manager50 and 900W of roof-mounted solar.

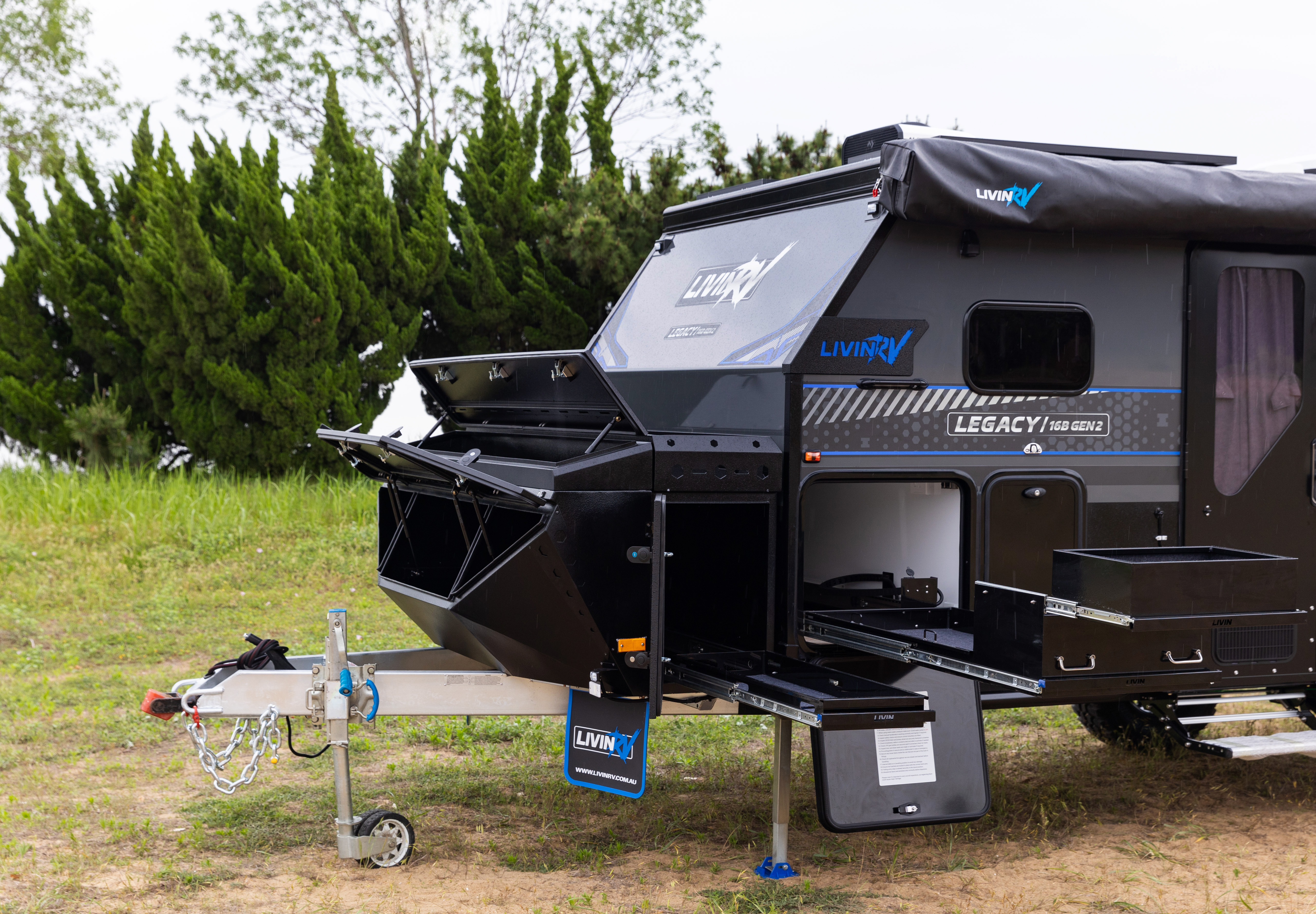

Meet the LIVIN RV Legacy 16D Gen 2 – the perfect 16-foot caravan for couples and adventurers seeking comfort, capability, and effortless touring without stepping up to a larger van.
With a tare weight of 2,450kg, the Legacy 16D Gen 2 offers the ideal balance of spacious living and practical towability, making it perfect for weekend getaways or extended off-grid adventures across Australia.
Inside, you’ll find a comfortable queen-sized bed, a spacious café-style dinette, a fully equipped internal kitchen, and a well-appointed rear ensuite featuring a separate shower and toilet for added privacy and convenience. With ample storage throughout, every inch of the 16-foot layout has been thoughtfully designed to maximise comfort and functionality.
Step outside and enjoy the convenience of a stainless steel slide-out kitchen, complete with a gas cooktop and sink, making outdoor cooking and entertaining easy wherever your travels take you.
Built to handle Australia’s toughest conditions, the Legacy 16D Gen 2 comes standard with 900W of roof-mounted solar, 400Ah of lithium battery capacity, the advanced REDARC Alpha Manager50 battery management system, a REDARC 2000W inverter, Dometic reverse-cycle air conditioning, diesel heating, and premium appliances throughout. These features provide the confidence to enjoy extended off-grid adventures without compromising on comfort.
Constructed on a fully hot-dipped galvanised chassis and equipped with Pedders independent suspension, the Legacy 16D Gen 2 is engineered for genuine Australian touring. Combining rugged durability, premium craftsmanship, and practical design, it’s the ideal caravan for travellers who want to explore further in complete comfort.
